SLK M461 Mixer and Agitator Seal
| Type ： |
SLK M461 |
| Temperature： |
T: -30℃～+200℃ |
| Technical parameters： |
Yes |
| Pressure force： |
P≤0.6MPa |
| Line rate： |
Vg≤5m/s |
| Materials： |
Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC/Ceramic) Secondary Seal (VlTON/Encapsulated Ring/PTFE) |
Order Hotline：0086-512-58728158

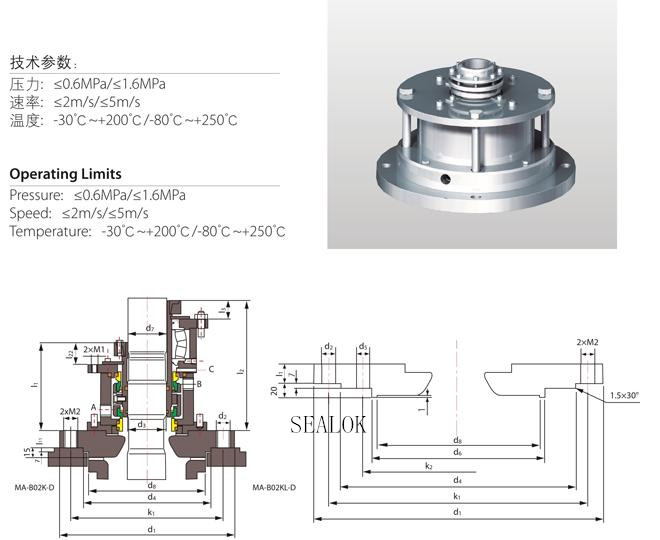

SLK M461 Mixer and Agitator Seal(replace BURGMAN M461 )
Operating Limits:
Pressure: ≤0.6MPa/≤1.6MPa
Speed: ≤2m/s/≤5m/s
Temperature: -30℃~+200℃/-80℃~+250℃

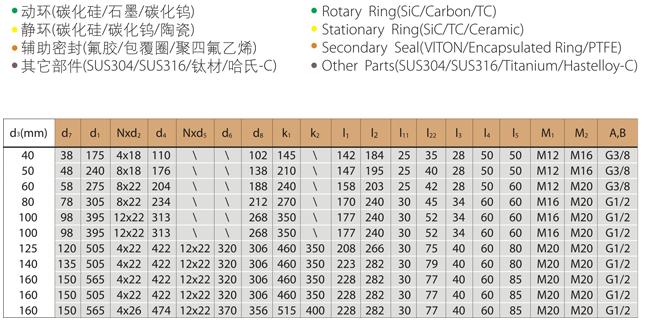

Rotary Ring (SiC/Carbon/TC)
Stationary Ring (SiC/TC/Ceramic)
Secondary Seal (VlTON/Encapsulated Ring/PTFE)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)
